Hot Sale Indoor Full Color P3 P6 Advertising Led Display Screen

Melton optoelectronics co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

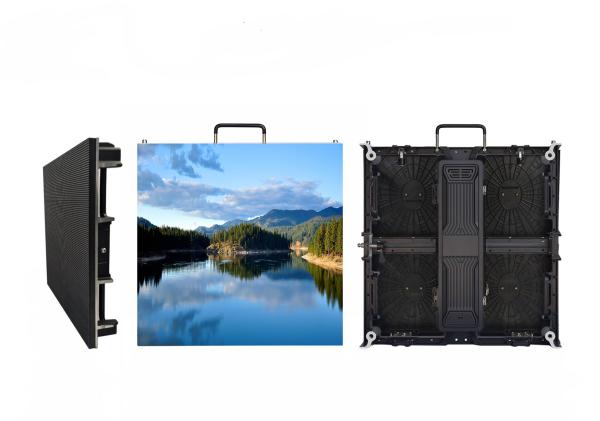

Hot Sale Indoor Full Color P3 P6 Advertising Led Display Screen

Brand Name : MLED

Model Number : P3

Certification : CE ROHS FCC

Place of Origin : China

MOQ : 10 Square Meter

Price : USD 690-750 Per Square Meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Square Meter Per Month

Delivery Time : 10-15 Days

Packaging Details : Carton box/ Poly wooden case/ Flight case

Product name : Hot Sale Indoor Full Color P3 P6 Advertising Led Display Screen

Refresh name : 1920Hz

Brightness : 6000cd/m2

Led chip : Epistar + Opto + Silan

Led lamp : Hongsheng Kinglight Nationstar

Cabinet material : Aluminum

Warranty : 2 Years

Contact Now

Hot Sale Indoor Full Color P3 P6 Advertising Led Display Screen

Product description

1) The system design is advanced and reasonable, the display effect is stable, and the installation and maintenance are convenient.

2) All day work: vivid color, high refresh frequency, anti-static, dust-proof, good heat dissipation effect, high cost performance.

3) Display mode: left and right movement, up and down movement, left curtain pulling, right curtain pulling, middle opening and closing, flickering, instant display, etc.

4) Using program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information through, mouse. The content of the arrangement is stored in the control card, and the information is displayed automatically according to the program table.

5) Strong luminous intensity: within the visible distance, when the sunlight is directly on the screen surface, the display content is still clear and visible.

6) Good visual angle: it has large visual angle in horizontal and vertical, which is suitable for the environment with wide horizontal distribution and large height drop.

7) The effect is good: using non-linear point by point correction technology, the text is clearer and the sense of hierarchy is stronger;

8) Strong reliability: it adopts distributed scanning technology and modular design technology, with higher reliability and stability;

9) Display mode diversification: support multiple display modes;

10) Easy to operate: computer editing content sent to the system control card, you can display the edited content, the system operation is very convenient.

Here some parameter for referance
Unit Module Item Parameter
Model Number P3-32S
Module size 192mm*96mm
Pixel pitch 3mm
Pixels Density 111111dots/m2
Pixel configuration 1R1G1B
Package mode SMD 2121
Pixel resolution 64dots(W)*32dots(H)
Max Power 25W
Module thickness 12-14mm
Weight 0.18kg
Drive type Constant drive
Scan mode 1/32scan
Port type hub75/HUB3.0
Brightness of white balance ≥1200cd/m2

LED

Cabinet

Dimension 576mm*576mm
Monomer Module Number 18
Power supply 5V/60A*1 pcs
Thermal discharge anto
Pixel per cabinet 192*192dots
Best viewing distance 6M~40M
Best viewing angle 160°(W) 120°(H)
Temperature

storage:-35℃~+85℃

working:-20℃~+50℃

Relative humidity 10%-95%
Thickness 80mm
Power Working voltage AC220V±10%
Average Power consumption 270W/㎡
Max.Power consumption

≤680W/PC

Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768

Our projects
Hot Sale Indoor Full Color P3 P6 Advertising Led Display Screen

Our good feedbacks

Hot Sale Indoor Full Color P3 P6 Advertising Led Display Screen

FAQ

Q1.What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.

Q2. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.


Q4. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.


Q5. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q1.What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.

Q2. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.


Q4. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.


Q5. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
