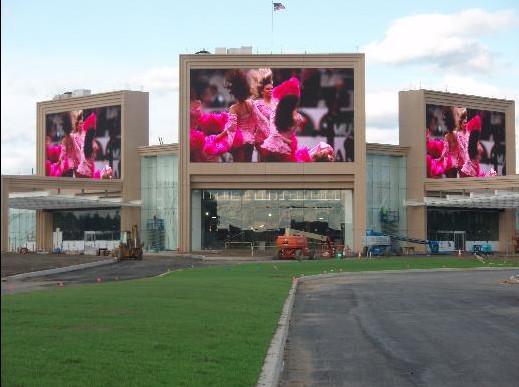

Super brightness full color LED billboard advertising
1.Show all kinds of word,text,graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other
formats with your PC does synchronously.
2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA,SDI,
MOV,MPG,HD-SDI, etc.
3.Self-adjustment function
automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition
4.It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall,
banks, schools, bus station, airport, gym, market, factories, monitoring centers,hospitals, bars etc.
1) System structure

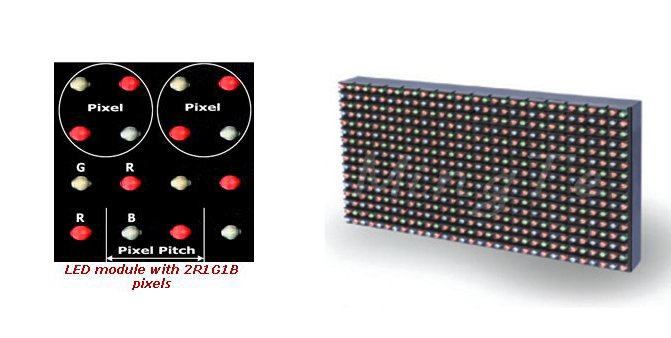

2)Led Module
| Module Size(W * H) | 256mm*128mm | Pixel Configeration | 2R,1G,1B |
| Pixel Pitch | 16mm | Resolution(W*H) | 16dots*8dots |
| Pixel Density | 3906 dot / m2 | Driving Method | static Current |
3)Led cabinet
| Cabinet Size(W * H) | 1024mm*768mm | Module Qty | 20pcs |
| Cabinet Resolution(W * H) | 64dots*48dots | Cabinet Pixel | 4096 |
| Weight | 56kg/pc | Area | 1.23(m2) |
| Avarage Power Consumption | 200W/m2 | Max Consumption | 600W/m2 |
4)Led Video wall technical parameter
| Operating Humility | 10% ~ 90% RH |
| Oprating Temprature | -20°C ~ +60°C |
| Optimal Viewing Distance | 10m-60m |
| Display Color | 1,070,000,000 |
| Gray Scale | 65536grade |
| Brightness control | 256grade |
| Frame Frequency | 60HZ |
| Refresh Speed | >300HZ |
| Power Supply | 220V/50HZ |
| MTBF | ≥10,000hours |
| Life Span (50% brightness) | ≥100,000hours |
| Control Mode | synchronization with PC |
| Input Signal Format | VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
| Operating System | WINDOWS(98,2000,XP,Vista) |
